Product Details
＋
The Rosie Pre-Wired Systems were designed by MidNite Solar’s engineers with over 100 years of renewable energy off-grid experience!

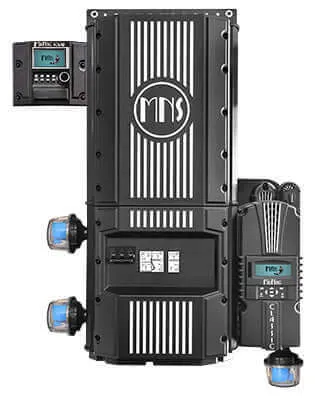

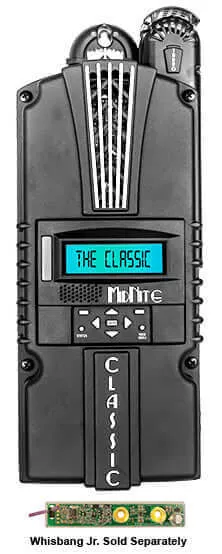

A high frequency, high power design that is light weight and provides pure sine wave power! This prewire is the MNROSIE7048-CL200-PW version which includes the MidNite Rosie Inverter, MidNite Classic 200 MPPT Charge Controller, MNGP2 Graphics and Programming Module, and of course the all important MidNite SPD's!
FEATURES
- 7000 Watts / 48 Volt DC
- Extremely Lite Weight
- Rosie Inverter: 42 Lbs.
- Rosie E-Panel: 21 Lbs.
- Rosie Backpanel: 8 Lbs.
- Includes 2 MNSPD-300-AC For Rosie And An Additional MNSPD-300-DC Per Classic Installed
- 2 Aux Input/Outputs
- 120/240 Vac Output
- True Sine Wave Inverter With Charger
- Zero Transfer Time
- Quiet Forced Air Cooling

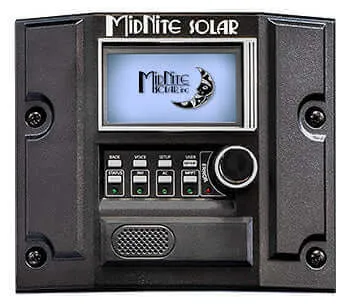

- State Of Charge Monitoring With MidNite Wizbang Jr. And MNGP2 Display
- Die Cast Aluminum Enclosure
- Auto Gen Start (Two-Wire Generators) Coming Soon
- Battery Temperature Sensor Included
- Remote Battery Voltage Senser
- Canbus Communication
- Lithium Compatible
- 60A Transfer Relay
- Screened (Gecko/Mud Dauber Proof)
- Listed UL1741 And CSA NOTE: CSA Pending On Breaker Boxes
- Designed And Built In Arlington, WA USA
DOWNLOAD:
Reasons For Purchasing A ROSIE INVERTER!
- The Well Designed And Attractive Looking ROSIE Inverter Is Easy To Use And Is Extremely Adjustable. A Lot Of The AIO (All-In-One) Units Miss The Mark. They Lack Grid Support Functionality With The Ability To Add Power From The Battery To Support Loads Greater Than The AC IN Allows As An Example.
- Reparability Is An Important Feature Of The ROSIE!
- The ROSIE Has Great Redundancy, When An AIO Fails It Needs To Be Completely Replaced. When A ROSIE Or MPPT Fails You Can Replace Part Of It And Not Lose The Complete System.
- The Surge Power On The ROSIE Is Second To None! MidNite Has Installers And Distributors Doing Amazing Things With ROSIE’s Surge Power. I Ryan Stankevitz, Personally Watched A Distributor’s Stacked ROSIES Doing 9-10,000 Watts And We Physically Shut Down The Slave And The Master Just Kept Going. The Single ROSIE Would Not Be Able To Sustain Such A Severe Overload For Forever, But It Performed Incredibly. The Lights Didn’t Even Blink! Starting Motor Loads Is A Cake Walk For Rosie And She Will Start A 11kw 120v Load On Unbalanced Legs. Try Any Of That With The Offshore AIO Units.
- The ROSIE Has Amazing Flexibility In Use And System Scale/Design. MidNite Has Heard A Lot Of Feedback That The All-In-One Inverters Are A Flash In The Pan. Once You Get Into Their Functionality, You’re Forced Into Steps Or Sizes That Are Not Convenient For The User’s Needs.
- The ROSIE’S System Software Can Be Update For Future Enhancements Via Blue Tooth.
- The ROSIE E-Panel Has A 120/240VAC 60 Amp AC Bypass. The Version Of This E-Panel For Stacked ROSIES Has A 100 Amp AC Bypass. AIO Inverters Never Have An AC Bypass. AC Bypass Switches Have Been Standard In North America For 30 Years. When You Live Off-Grid, An AC Bypass Switch Is Important.
- ROSIE’s E-Panel Accommodates 150VDC To 600VDC PV Breakers Plus The MPPT Battery Breaker.
- The ROSIE E-Panel Accommodates SPD’s (Surge Protection Devices) For AC In, AC Out, PV In And Battery Circuits.
- The ROSIE Weighs Only 43 Pounds. Compare That To Any Other Inverter In Its Class.
- ROSIE’s Power Save Mode Drops Idle Power From 25 Watts Down To 5 Watts When No Loads Are Present.
- The ROSIE Has A Multitude Of Aux Features Available From Its Two Aux Circuits. The Most In The Industry.
- MidNite Listens And Makes The Changes Needed To Make Our Product Work The Way The Installers/Users Need.
- If In The Rare Instance Support Is Needed, MidNite’s Support Is Just A Phone Call Or Email Away!
- THE ROSIE IS MADE IN THE USA!
| Rosie - Classic200 Pre-Wired System - MNROSIE7048-CL200-PW | |
| Output Power (Continuous) At 25°C | 7000VA |
| Overload 30 Min Sec At 25°C | 8400VA |
| Output Power (Continuous) At 40°C | 6000VA |
| Maximum Output Current 60 Seconds (RMS) | 88A |
| Maximum Surge | 15,000VA |
| Output Frequency / Voltage | 60Hz/Output Voltage 120 Or 120/240VAC |
| Total Harmonic Distortion At Rated Power | <5% |
| Consumption | 30 Watts Without Search And 7 Watts With Search |
| Input DC Voltage Range | 40 To 65VDC |
| Maximum Solar Charge | 86/78/55A |
| Maximum Charge From AC Source | 120A (Can Be Combined With Solar Charging) |
| Charge Control | Two Or Three Stage Charging |
| Warranty | 7 Years |
