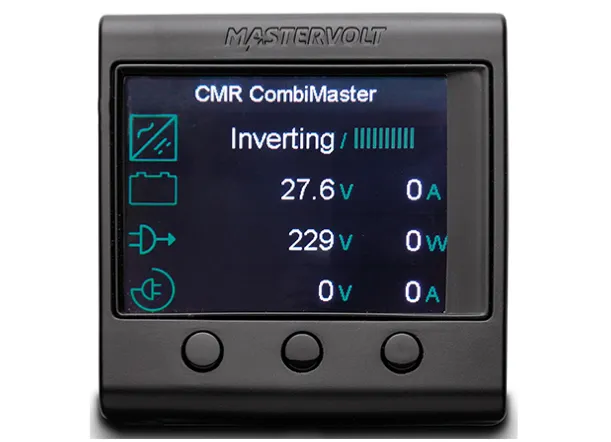

The SmartRemote completes any MasterBus or CZone system and is ideal as a remote panel in entry level power systems, or as a local device readout in larger systems.
Local Device Monitoring
Mastervolt products enable intelligent power systems with advanced multi-device monitoring and control. However, in situations where the local device readout is hard to reach or too limited, an entry-level colour display for local device monitoring would be ideal. This is where the SmartRemote comes in.
Easy to Use
The new SmartRemote single-device display is unique in many ways. It communicates with Mastervolt devices**, shows key parameters, allows simple device settings and is fun to use. Checking your batteries, adjusting your shore fuse or controlling your Mastervolt charger/inverter has never been easier.
Easy to Install
The SmartRemote display can be panel mounted or may be integrated into a Blue Sea Systems Custom 360 bezel. Connection is easy as 1-2-3: simply click the network cable into a Mastervolt device and off you go.
Key Features
- Full colour display for local device monitoring.
- Displays four key parameters.
- Control key device functions.
- CZone* and MasterBus network compatible.
- Universal, easy mounting.
- Plug & Play; no configuration, no power supply needed.
- Blue Sea Systems Custom 360 integration.
Specification
| Interfaces: | CZone, MasterBus |
| Display/read-out: | 2.8 inch, 320 x 240 pixels, high colour |
| Mounting panel: | Mount (cutout: Ø 52mm / 2 inch, 4 screws included); Blue Sea 360 panel mount (locking ring included) |
| Protection degree: | IP20 |
| Dimensions (H x W x D): | 72 x 72 x 29.4mm (2.8 x 2.8 x 1.2 inch) |
| Weight: | 0.075 kg (0.2 lb) |
| Delivered with: | MasterBus cable (6m), Mastervolt-CZone drop cable (1m), manual |
| Power consumption: | Bus powered, < 160 mW (idle mode) |
