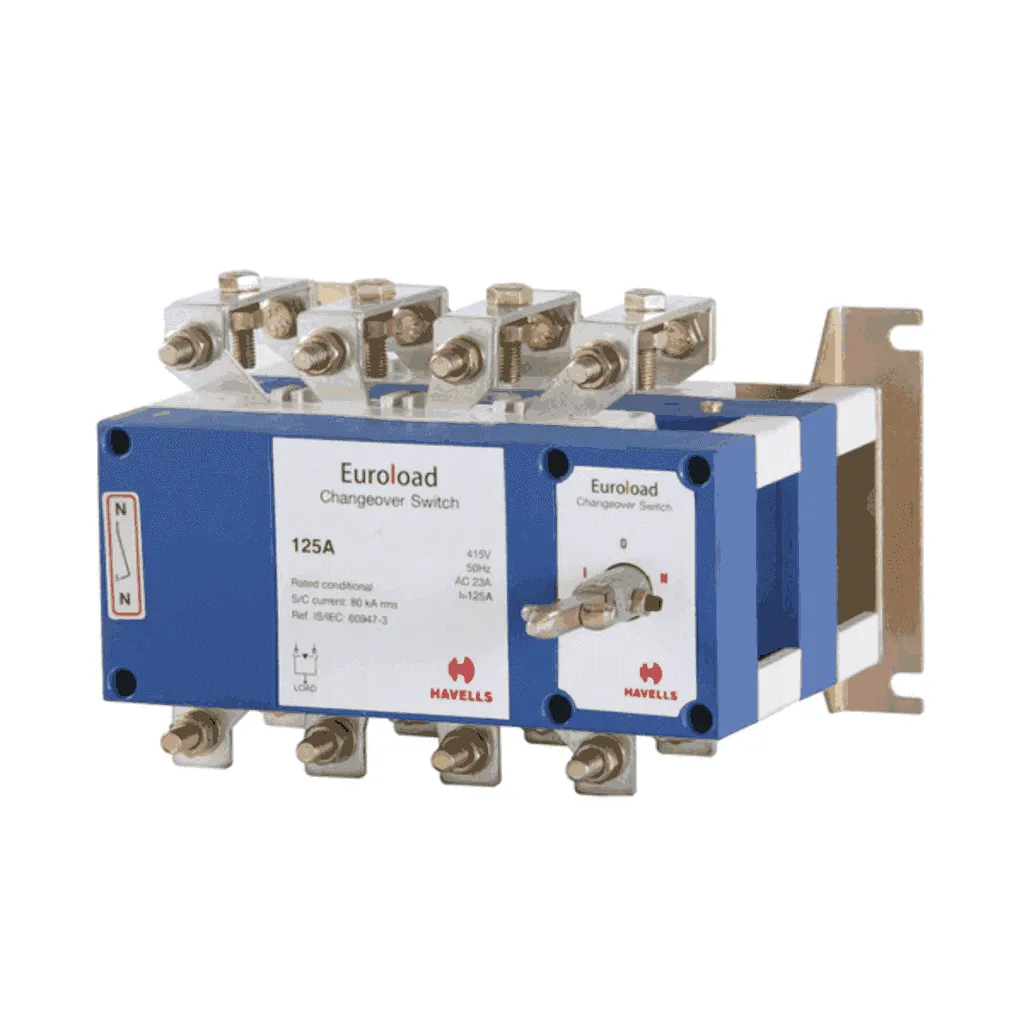

Product Description
-
Widest Range from 40A - 3150A
-
Offers widest Range of Operational Current depending on Load Requirement
-
Four Pole with Advance Neutral
-
Neutral Pole makes First and breaks Last thereby providing Safety
-
Separate Main and Arching Contacts
-
During Breaking operation, Arching takes place only on Arching Contacts thus increasing life of Switch
-
Totally Enclosed Mechanism
-
Allows for dustproof and Smoother operation
-
Extended Outgoing Terminals
-
Provides ease of Termination
-
Line & Load Reversibility
-
Allows flexibility for Source & Load connections
-
Add-On Auxiliary Switch
-
It enables facility for signalling indications and interlocking in circuits
-
Adjustable operating shaft
-
Allows for ease of mounting within the depth of the panel
-
Handle with door interlock and padlock facility
-
Enables safety during Operation / Non Operation of the Switch
Product Specification
|
Brand |
Havells |
|
Standard Conformity |
IS / IEC 60947-3 |
|
Rated Operational Voltage |
415 V AC |
|
Rated Impulse Voltage |
1000 V AC |
|
Utilisation Category |
AC - 23 A |
|
Rated Frequency |
50 Hz |
|
Operating Altitude |
2000 m |
|
Humidity |
0 - 90% |
|
Rated Impulse Voltage |
8 kV |
|
Type Of Execution |
Open Execution |
|
Frame Size |
0 |
|
Product Variants |
|
|
Rated Current |
Model |
|
125 A |
IHCNFO0125 |
|
160 A |
IHCNFO0160 |
|
200 A |
IHCNFO0200 |
