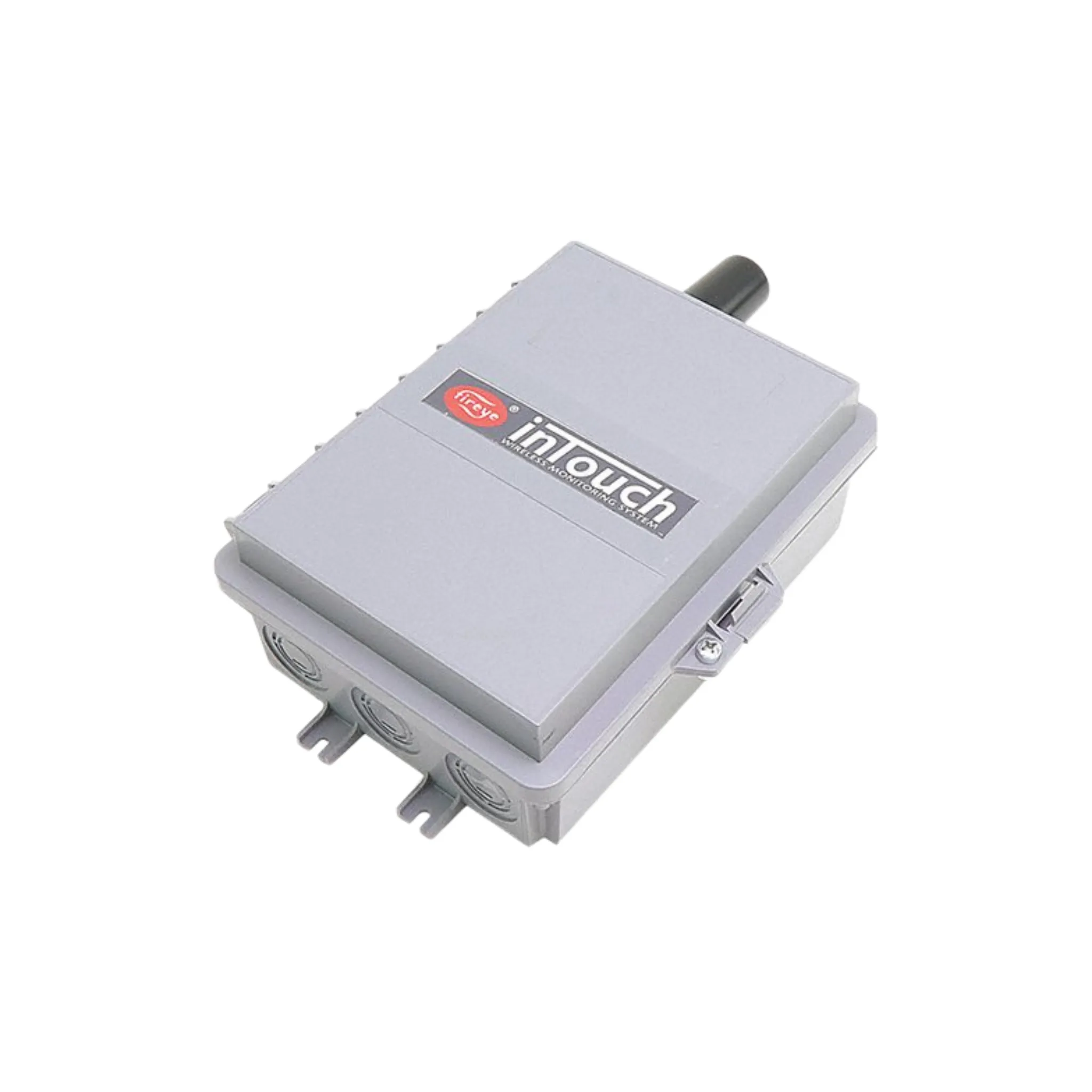

The Fireye inTouch Type IT1000 provides continuous monitoring of the Flame-Monitor, MicroM
and BurnerLogix Y & Z flame safeguard controls. In the event of a lockout, the inTouch system
reports the condition causing the lockout and the make, model and location of the equipment over the
wireless 4G LTE cellular network using a wide variety of delivery methods, i.e., telephone, fax,
e-mail, pager (alphanumeric, numeric). The user also configures which individuals will receive a message regarding certain operating conditions.

Features:

• Immediate notification of lockout
• 24/7 monitoring
• Direct interface to Flame-Monitor, MicroM or BurnerLogix
• Utilizes cellular network – 4G LTE
• Monitors up to 10 Flame Safeguard Devices
• Monitors 4 dry-contact inputs, selectable alarm on open or close
• Monitors 4 AC inputs, selectable alarm on no voltage or voltage
• Selectable 4800/9600 baud rate
• Battery back-up
• Service button, test message
• 24 Hour heartbeat status
• User configurable messages
• NEMA 4 housing
• Low monthly service charge

Specifications:

Manufacturer: Fireye
Manufacturer Part Number: IT1000
Product Type: Wireless Monitoring System
Material: UV Resistant ABS Grey
Enclosure Type: NEMA-4 Suitable for Outdoor Mounting
Input Voltage: 85 - 120 VAC @ 50/60 Hz
Battery Backup: 9.6 VDC NICAD
4 AC Inputs: 24-120 VAC; 3 mA
4 Switch: Dry Contact Closures
Operating Temperature: -40 to 160 Degrees F
Radio Transmit: 900 - 1800 MHz
Radio Receive: 900 - 1800 MHz
Output: 1.5 Watts
Antenna: Quad Band 4G LTE Antenna
Dimensions: 14.4" x 12.55" x 8.7"
Weight: 5.25 lb.
